24fiber MPO Trunk Cable Optical Fiber Breakout Multimode Patchcord

Basic Info.

Model NO.	MPO-MPO
Material Shape	Round Wire
Allowed Lateral Pressure	100(N/100mm)<1000(N/100mm)
Allowed Tensile Strength	1000N<10000N
Core	72 Core
Certification	RoHS, CE, ISO9001, VDE, CCC, CPR, Anatel
Brand	OEM
Sheath Material	PVC
Test Wavelength	850/1300nm
Insertion Loss	<0.35dB
Fiber Count	24 Core
Outer Jacket Color	Aqua
Length	25meters
Return Loss	>25dB
Jacket Od	3.0mm
Gender	Female
Fiber Category	50/125um
Connector	MPO- MPO
Name	24fiber MPO Trunk Cable Optical Fiber Breakout Pat
Transport Package	PP Bag, Carton Box
Specification	3.0mm
Trademark	Takfly
Origin	China
HS Code	854470000
Production Capacity	6000PCS/Day

Product Description

Optical Fiber MPO patch cord Product Name

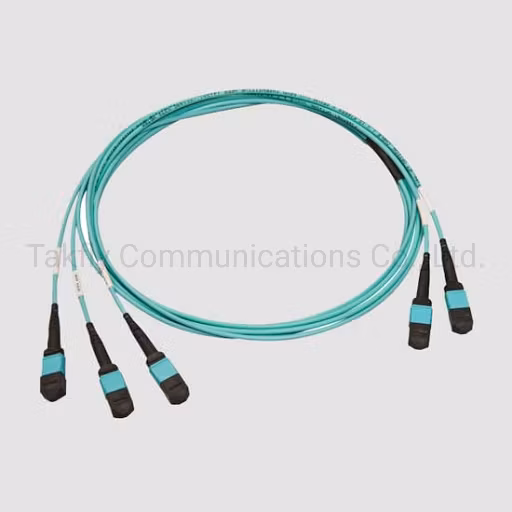

24fiber MPO trunk cable optical fiber breakout patchcord

Optical Fiber MPO patch cord Description1. MPO patchcord can be MPO-MPO, MPO-LC, MPO-FC, MPO-SC, MPO-E2000, MPO-ST, MPO fan-out cable patch cord, MPO breakout cable patch cord, etc.2. Length can be customized according to your requirements.3. Fiber cable has single-mode and multi mode.4. The MPO MTP connectors have standard insertion loss and low insertion loss.5. cable diamter normal is 3.0mm round cable, we also have flat calbe.6. MPO/MTP connector types have 4/8/12/16/24/32 fiber.7. MPO/MTP patch cord has A type, B type, and C type ( fiber arrangement)
8. MPO/MTP has male and female connector.Optical fiber MPO patch cord types:Optical Fiber MPO patch cord Specifications:

products name	24fiber MPO trunk cable optical fiber breakout patchcord
mode type	multimode
cable count	24 core ( can be 4/8/12/16/24/32 core )
core type	50/125um
cable color	Aqua ( customized )
cable diameter	3.0mm ( customized )
patch cord length	25 meter ( customized )
out jacket material	PVC ( can be PVC or LSZH )
insertion loss	≤ 0.35dB
return loss	≥25 dB
wave length	850/1300nm
connector type	female
connector color	aqua
ferrule material	plastic
operater temperature	-40~ +85ºC
cable print	standard print ( can customized )
OEM/ODM	acceptable
warranty	3 years after delivery
Delivery time	2-15 working days ( according to your quantity )

Optical Fiber MPO patch cord Features and Benefits

Eliminate termination errors, Min installation timeEach cable is 100% tested for low insertion loss and back reflectionOptimized performance - Elite MTP and discrete premium connectorSupport 40GBASE-SR4 in applicable parallel optics networksCompliant to IEC-61754-7 and TIA-604-5(FOCIS-5) standard

Designation	Fiber Dia.(μm)	Type	10Gbps Ethernet 10GBASE SR/LR	40Gbps Ethernet 40GBASE SR4/PLRL4	100Gbps Ethernet 100GBASE SR10/IR4
OM1	62.5/125	Multimode	33 Meters (SR)	Not supported	Not supported
OM2	50/125	Multimode	82 Meters (SR)	Not supported	Not supported
OM3 (Laser Optimized)	50/125	Multimode	300 Meters (SR)	100 Meters (SR4)	100 Meters (SR10)
OM4 (Laser Optimized)	50/125	Multimode	400 Meters (SR)	150 Meters (SR4)	150 Meters (SR10)
Singlemode	9/125	Singlemode	10KM at 1310nm (LR)	1KM (PLRL4)	2KM (IR4 PSM)

How to order optical fiber patch cord 1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )4. Coating material : PVC / LSZH5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core/48 core / 96 core and so on6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM57. Patch cord length : according to your requirement8.MPO/MTP connector should let us know which method ( A type / B type /C type ), male or female , fiber count (4/8/12/16/24/32 fiber )
FQA :1. Q: Are you a manufacturer?
A: yes, we are a manufacturer , FTTH solution and data center total solution provider in Shenzhen, China, established in 2000.2. Q: What's your MOQ?
A: MOQ can be 1 pcs, but the price is not competitive.More quantity,the price will be more competitive.3. Q: Can you quote FOB price?
A: yes. We can delivery by air, DHL, TNT, UPC, FEDEX, etc. For big quantity we will deliver it by sea.
We can quote price with freight and lead time for you, after you let us know detailed requirements with quantity.We have competitive shipping forwarders. For more solutions, you can feel free to contact us.
4. Q: How is your quality?
A: Our production is according to IEC, Europe standard. CE, ISO, RoHS, CPR, and ANATEL certified.All the products are 100% test before delivery.5. Q: What's your lead time?
A: It depends on the quantity and products. For fiber optic patch cord, the lead time can be 2 -3 working days within 5000 pcs. We keep the regular products in stock. Also, we can deal with urgent orders.
6. Q: What's your warranty?
A: Depends one different product, we have1 years warranty for patch cord since delivery, but only responsible for non-artificial damage. For artificial damage, we can repair it for you for free, freight will be paid by your side.7. Q: What's your packing?
A: International export standard package.If you need to print your logo on the packing, please let us know before we quote.8. Q: Can you offer OEM/ODM?
A: yes, we can. all products accept OEM /ODM. we can sign the Confidentiality Agreement.9. Q: Can I have a sample?
A: It depends on which products, Free sample provide under 10 usd. Freight will be paid by buyer before delivery.10. Q: How can I order?
A:1.send mail or inquiries with product name, specification, and quantity to us . Provide your receive address if you need FOB,CIF,CFR price.
2.We will offer our quotation with lead time.
3.After the quotation confirmed, we will send a PI with our bank account.
4.Production will be arranged after the payment received.
5.Confirm the consignee with you before we deliver it.
6.The tracking number will be provided after the delivery.
11. Q: What your payment term?
A: T/T, Western Union, Paypal, MoneyGram at once. For big amounts, can be 50% deposit in advance, 50% balance paid before delivery.
Workshop:
Certificates:
ISO9001, ISO1400, CE, RoHS, CPR, ANATEL certified

Exhibitions:
OFC, CommunicAsia, ECOC, Netcom, SVIAZ ICT, AFRICACOM, CAIRO ICT, etc.
